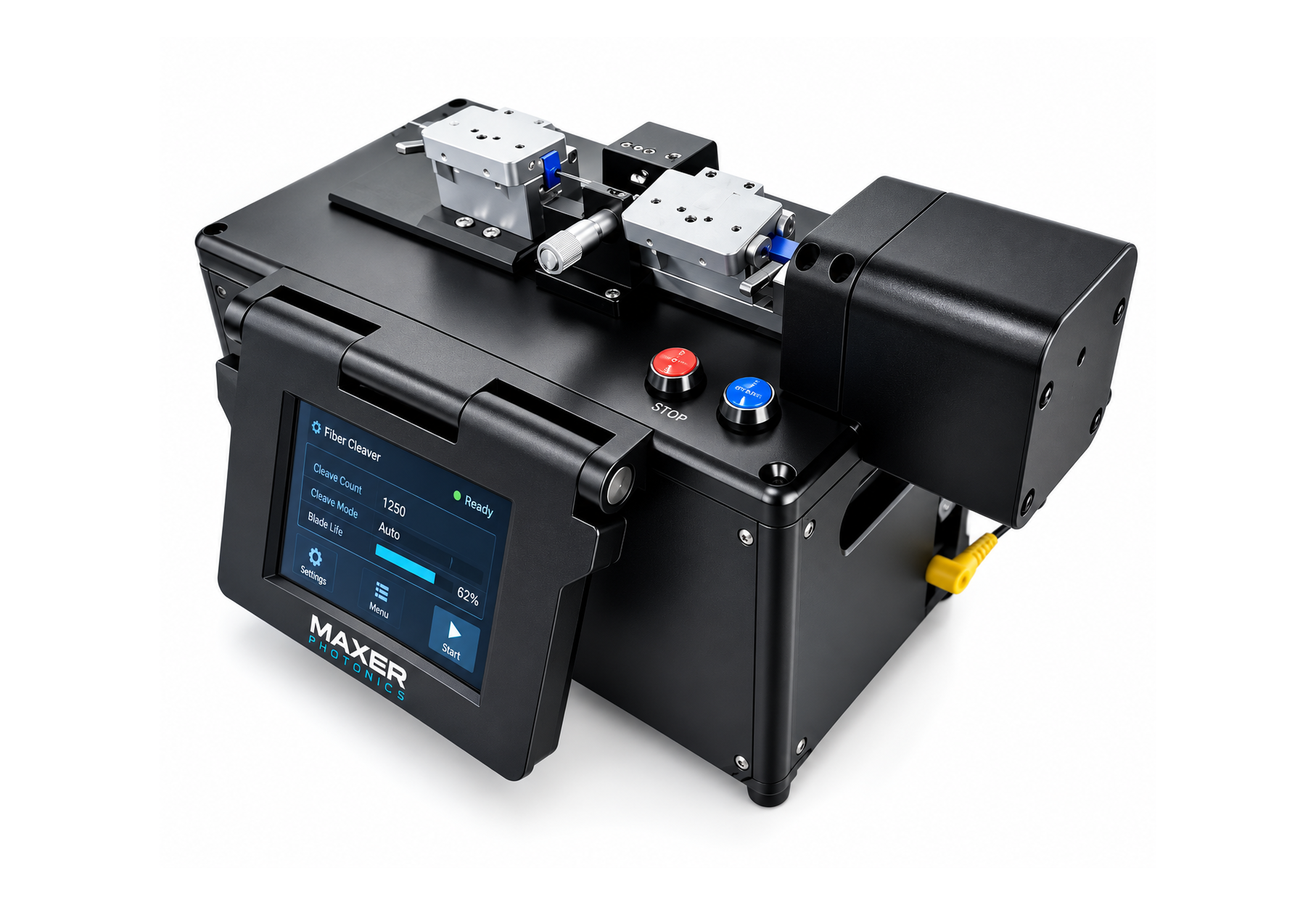

Automatic Large Diameter Fiber Cleaver
Precision automatic fiber cleaver for large-diameter, polarization-maintaining, bundled, and specialty optical fibers.
Product Overview
The Automatic Large Diameter Fiber Cleaver prepares large-diameter and specialty optical fibers for splicing and termination. The operator sets the required fiber tension on the touch-screen interface, and the system automatically adjusts the micrometer head to control the cleave. A diamond blade and a tension-and-scribe cleaving method are used across a range of fiber types, including PM fiber, large-core fiber, fiber bundles and glass tubes.
Technical Positioning
Interchangeable holders covering diameters from 80 μm to 3000 μm, or custom sizes, allow the same unit to move between standard fiber work and large-diameter or bundled-fiber preparation. Adjustable cleaving parameters support repeatable results in production, while the same flexibility suits fiber characterization and process development in R&D.
Key Specifications
| Micrometer Head Type | Automation |
| Residual Cladding Length | 2–50 mm |
| Display Screen | Touch Control |
| Cladding Cleave Size | 80–1500 μm |
| Coating Size | 80–2500 μm |
| Fiber Type | SM / MM / GDF / DF / PFC / Optical combiner / Fiber bundle / Glass tube |
| Cleave Method | Tension and scribe |
| Tension Range | Max. 5000 gf |
| Tension Accuracy | 3 gf |
| Blade Steps | 1.3 μm |
| Blade Material | Diamond |
| Cleave Angle Accuracy | Passive fiber ≤0.3°; Active fiber / PM fiber ≤0.5° |
| Clamping Method | Magnetic clamping |
| Operating Power Supply | 12 V DC / 5 A |
| Operating Environment | Temperature: 0–40 °C / Humidity: 5–95% RH |
| Dimensions (L × W × H) | 240 × 140 × 150 mm |
| Weight | 3.8 kg |
Configuration / Options
| Holder Selection | 80 / 125 / 200 / 250 / 320 / 360 / 400 / 500 / 550 / 750 / 1000 / 1250 / 1500 / 2000 / 3000 μm, or custom sizes on request |
