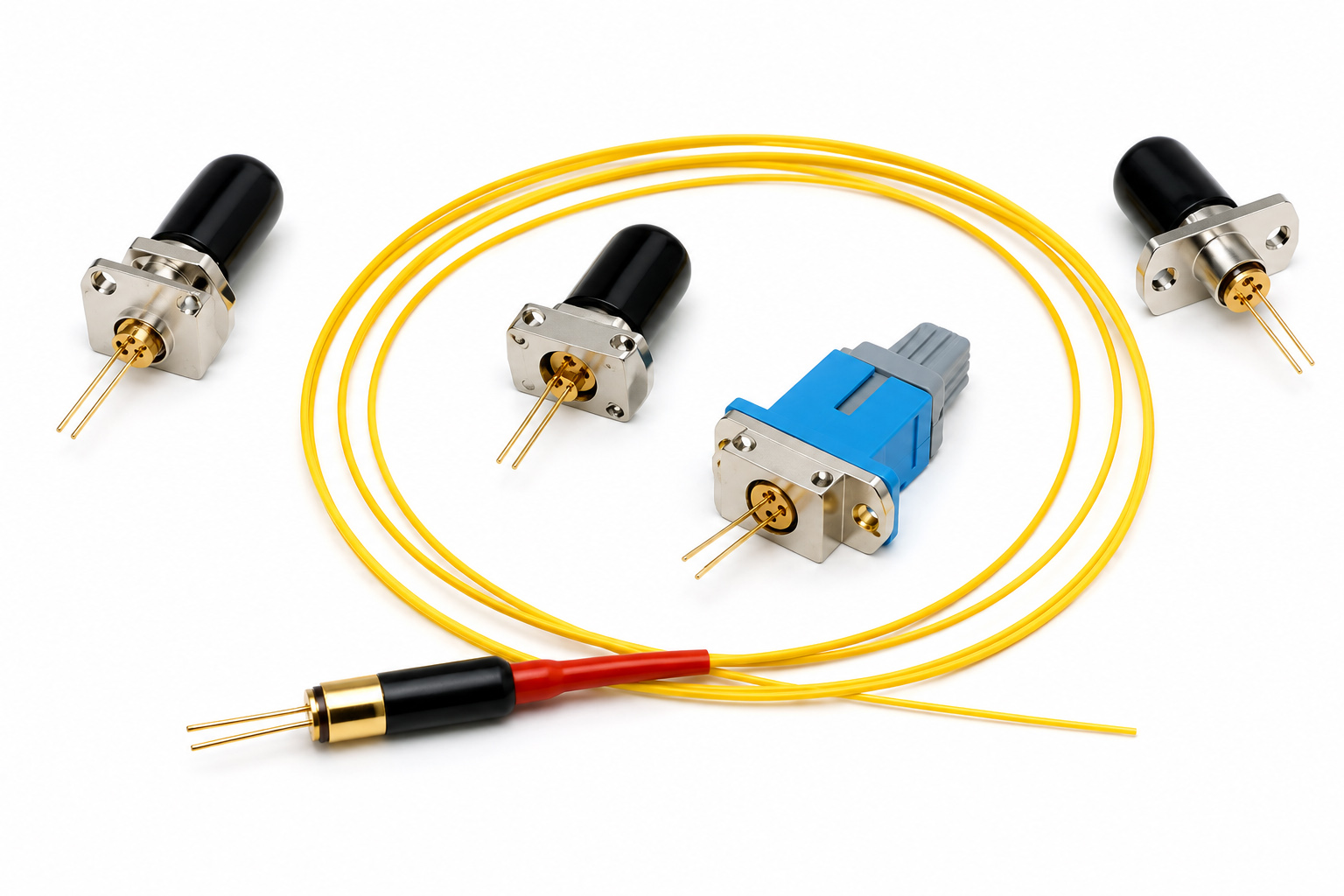

SM & PM Fiber Pigtailed Photodiodes
Planar-design pigtailed photodiodes with single-mode or polarization-maintaining pigtail, hermetic packaging and 100% purge burn-in for demanding optical systems.
Key Specifications
| Wavelength | 1000 – 1650 nm |
| Responsivity | 0.85–0.90 A/W (1310 nm) / 0.90–0.95 A/W (1550 nm) |
| Dark Current | 0.2 – 0.5 nA |
| Operating Voltage | -5 to -15 V |
| Frequency Response | 3 GHz |
| Back Reflection | -40 dB |
| Operating Temperature | -40 to +85°C |
| Storage Temperature | -40 to +85°C |
