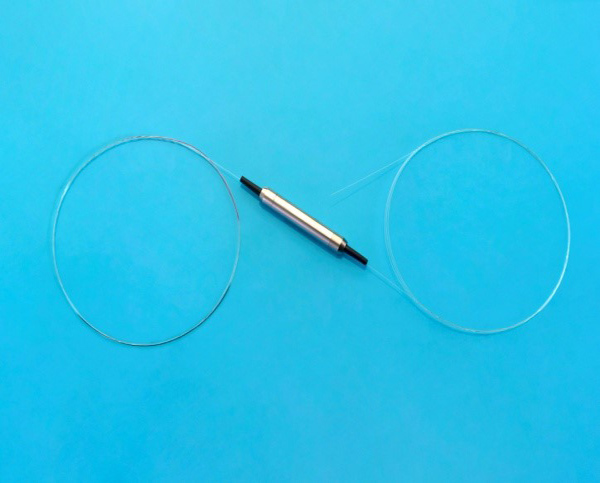

Single Mode Fuse WDM
A single-mode wavelength division multiplexer for combining or separating light at different wavelengths, with low loss and high isolation.
Key Specifications
| Operating Wavelength | 1310 nm / 1550 nm |
| Bandwidth | 20 nm |
| Minimum Isolation | 20 dB |
| Max. Insertion Loss | 0.25 dB |
| Max. PDL | 0.1 dB |
| Directivity | > 55 dB |
| Optical Power Handling | < 300 mW |
| Operating Temperature | -5 to 70°C |
| Storage Temperature | -55 to 85°C |
| Fiber Type | SMF28e |
| Package Dimension | Φ3.0 × 35 mm |
