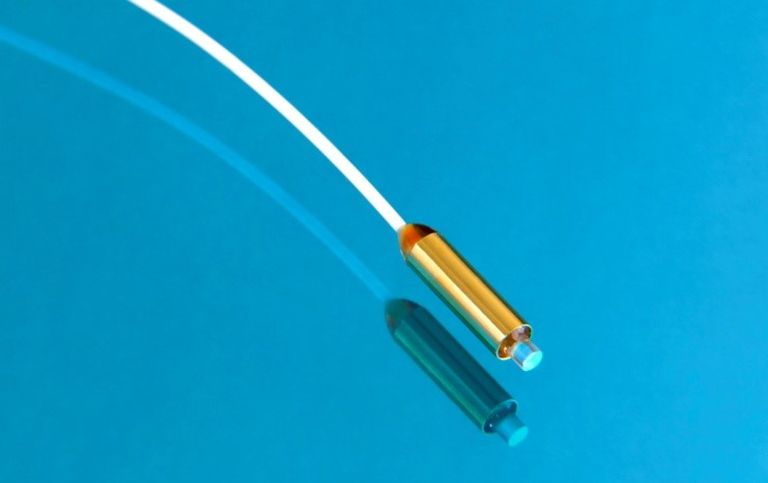

Polarization Maintaining Collimators
Polarization maintaining fiber optical collimator used to launch a beam of light from an optical fiber into free space and refocus it into another fiber while maintaining signal polarization.
Key Specifications
| Operating Wavelength | 1064 nm, or 1310 / 1550 nm |
| Insertion Loss (23°C) | ≤ 0.3 dB (1064 nm) / ≤ 0.25 dB (1310/1550 nm) |
| Extinction Ratio (23°C) | ≥ 20, ≥ 25, ≥ 30 or ≥ 35 dB |
| Fiber Type | Panda PM fibers |
| Return Loss | ≥ 55 dB (UPC), ≥ 60 dB (APC) |
| Operating Temperature | -5 to +70°C, others upon request |
| Storage Temperature | -40 to +85°C |
| Package Dimensions | Φ3.20×L10 / Φ2.78×L9 / Φ1.80×L7 / Φ1.40×L7 mm |
