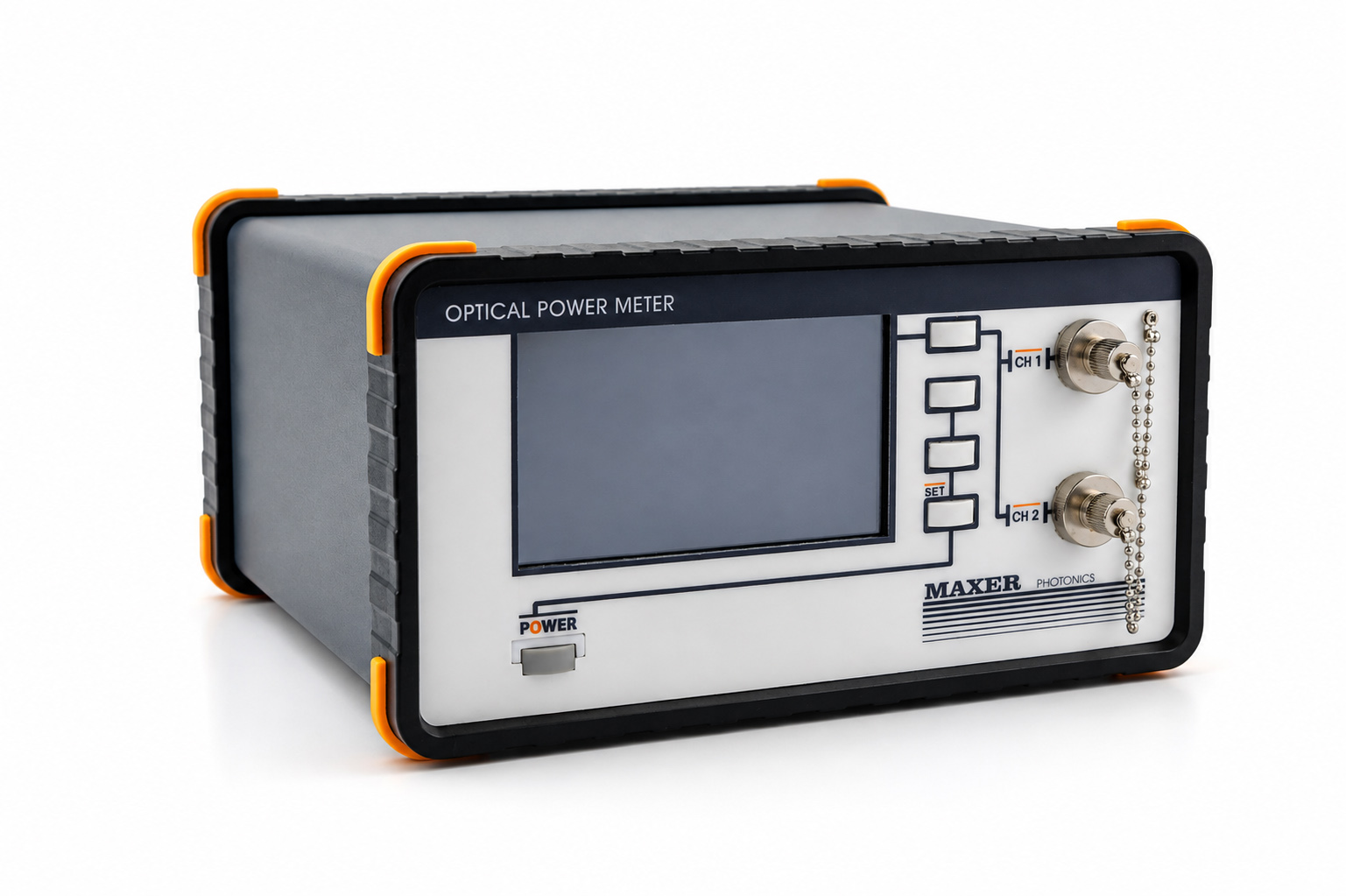

Optixor
A self-developed optical test instrument for high-precision optical power monitoring and analysis, designed for fiber communications, CATV, sensing and optical information processing, with wide wavelength coverage and a broad optical power dynamic range.
Key Specifications
| Measurement Channels | 1 to 10 |
| Detector Type | InGaAs |
| Wavelength Range | 800 - 1700 nm |
| Measurement Range | +10 to -70 dBm |
| Linearity | ±0.2 dB |
| Repeatability | ±0.05 dB |
| Optical Power Accuracy | ±3% |
| Resolution | 0.001 dB (Log), 0.01 mW (Lin) |
| Power Display | dBm, mW, dB (Relative) |
| Optical Connectors | FC, SC, ST, Bare Fiber (Optional APC) |
| Communication Interface | USB & Intranet |
| Display | 3.5-inch TFT LCD |
| Operating Temperature | 0-40°C |
| Humidity | 20%-80% RH |
| Power Supply | 100-240 VAC, 50/60 Hz |
| Dimensions (W x H x D) | 330 x 225 x 93 mm |
