PM Components

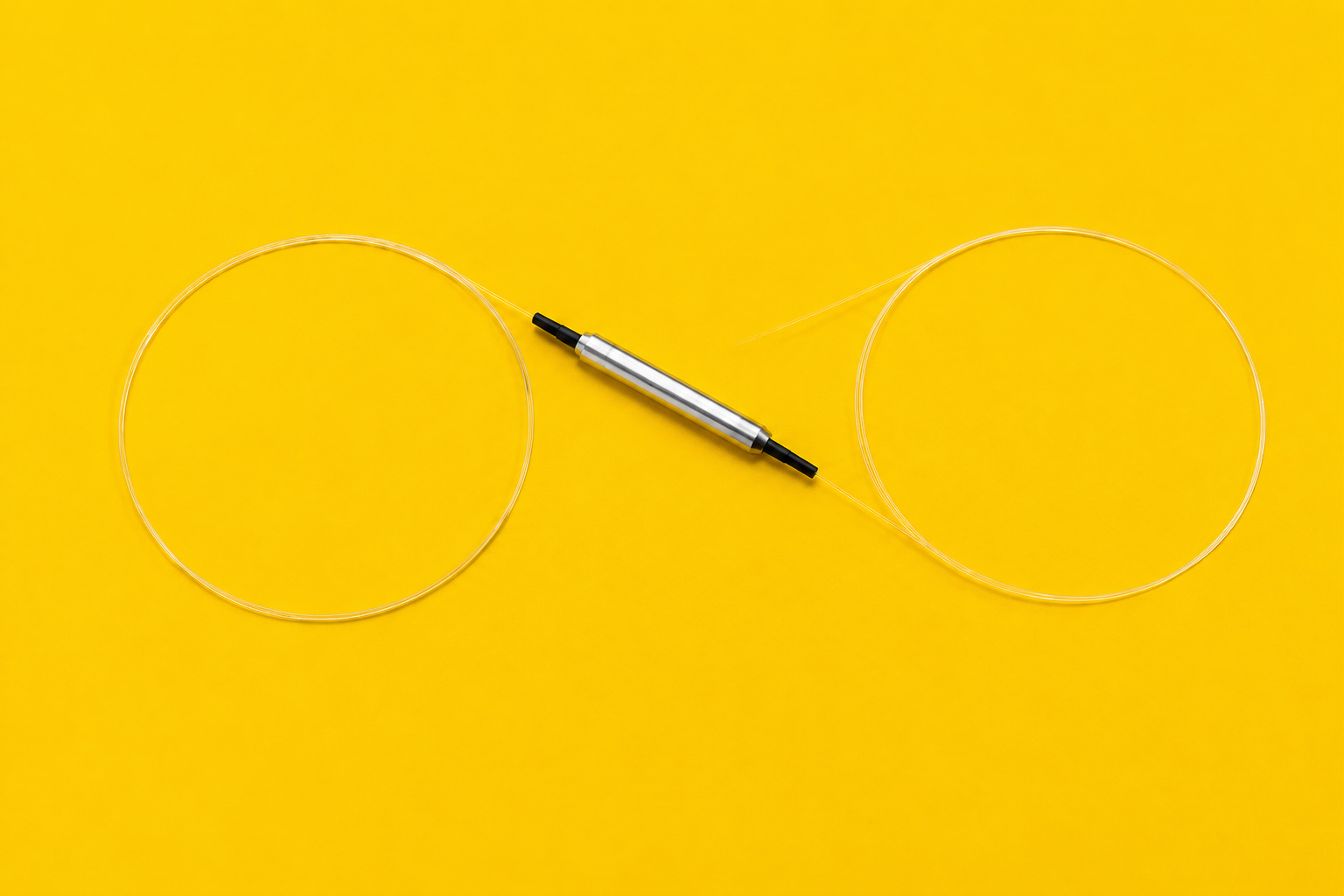

In-Line Fiber Optic Polarizers
An in-line fiber optic polarizer using birefringent crystal cladding on tapered fiber for polarization control and optical performance.
Key Specifications
| Operating Wavelength | 850, 1310 or 1550 nm |
| Bandwidth | 30 nm, or wider upon request |
| Insertion Loss (23°C) | ≤ 0.8 dB |
| Extinction Ratio (23°C) | ≥ 38 dB |
| Optical Power | ≤ 300 mW |
| Return Loss | ≥ 50 dB |
| Operating Temperature | -5 to +70°C |
| Storage Temperature | -40 to +85°C |
| Dimensions | Φ5.5 × L35 mm |
Need a custom configuration?
Our engineering team can tailor wavelength, power and interface options to your application.
