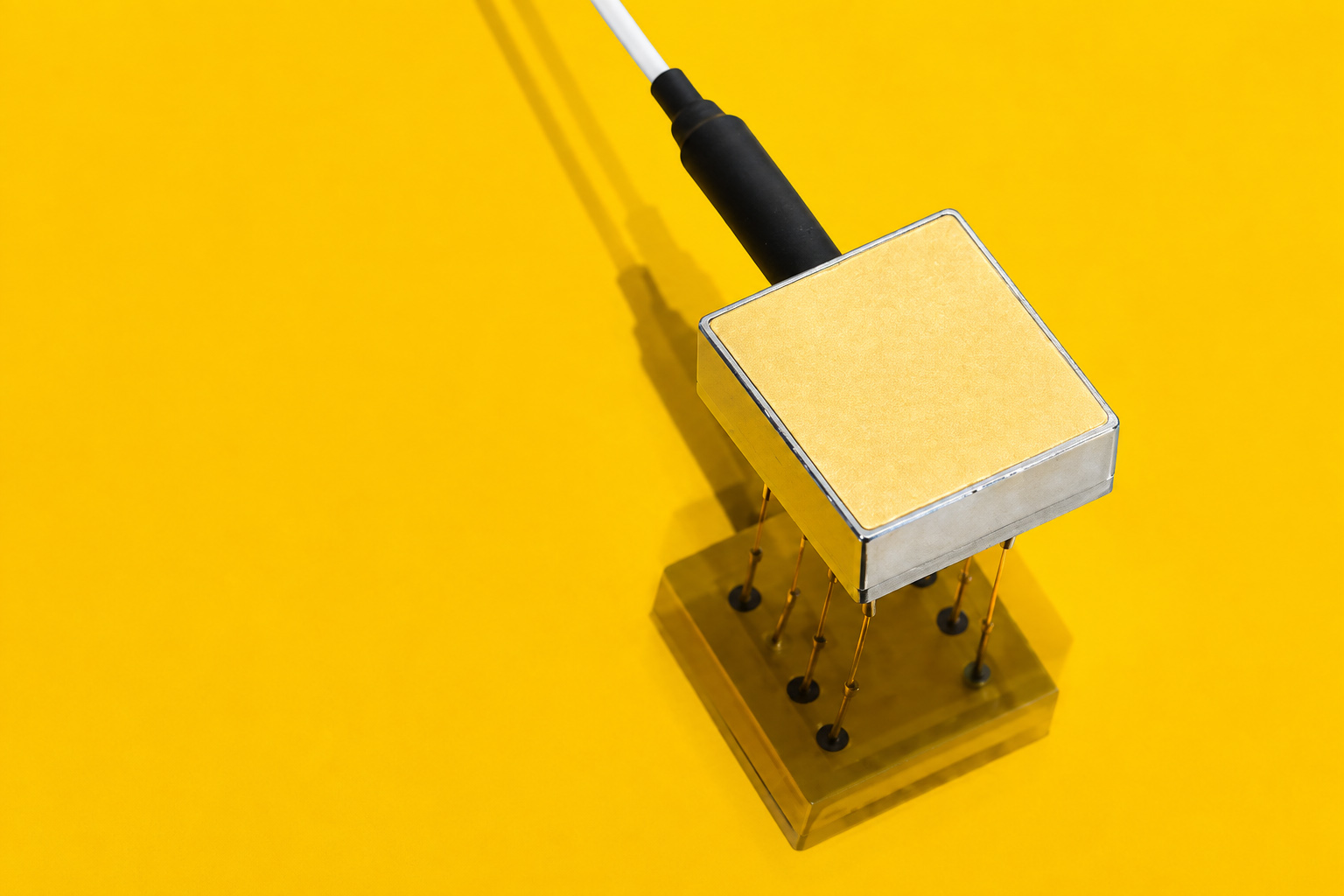

PINFET Optical Receiver Modules
A PINFET optical receiver module combining a photodiode and transimpedance amplifier in one package, built for high sensitivity and a wide dynamic range across a broad wavelength band.
Key Specifications
| Operating Wavelength | 1100 – 1650 nm |
| Responsivity | 0.95 V/µW (Model A) / 0.57 V/µW (Model B) at 1310 nm |
| Sensitivity | -56 to -51 dBm (A) / -52 to -48 dBm (B) |
| Bandwidth (-3dB) | 4 MHz (Model A) / 12 MHz (Model B) |
| Dynamic Range | 25 dB |
| Case Operating Temperature | -20 to +70°C |
| Storage Temperature | -40 to +85°C |
