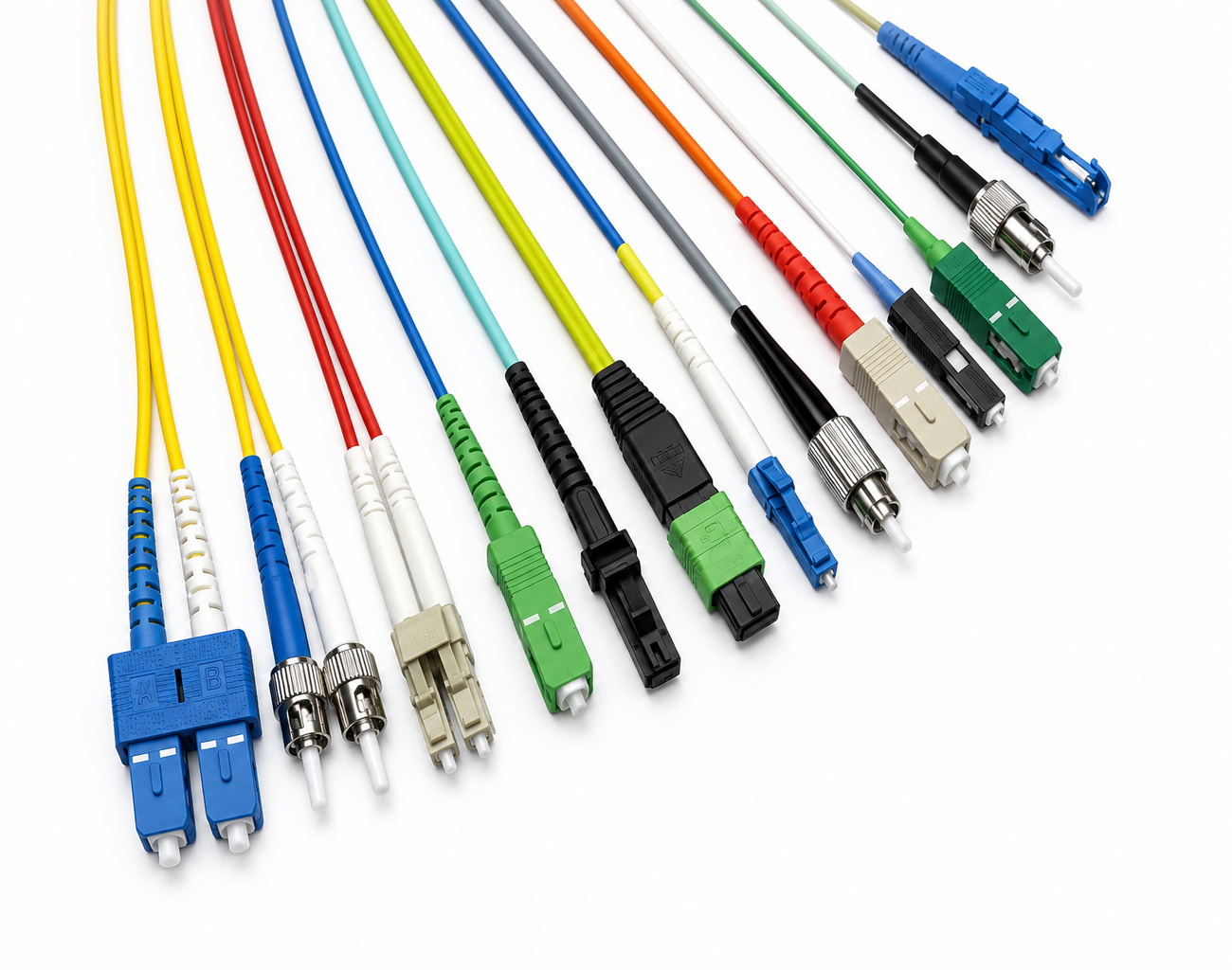

Polarization Maintaining Fiber Optic Patch
PM fiber optic patch cords designed to maintain the polarization state through transmission using orthogonal slow and fast axes for stable signal delivery.
Key Specifications
| Operating Wavelength | 1064, 1310, 1550 nm |
| Connector Type | FC/UPC, SC/UPC, LC/UPC, FC/APC, SC/APC, LC/APC |
| Insertion Loss | ≤ 0.2 dB (S) / ≤ 0.3 dB (P) / ≤ 0.5 dB (A) |
| Extinction Ratio | ≥ 26 dB (S) / ≥ 23 dB (P) / ≥ 20 dB (A) |
| Return Loss | APC ≥ 50 dB, UPC ≥ 55 dB |
| Optical Power | ≤ 500 mW |
| Fiber Type | Panda fiber |
| Operating Temperature | -5 to 75°C |
| Storage Temperature | -40 to +85°C |
